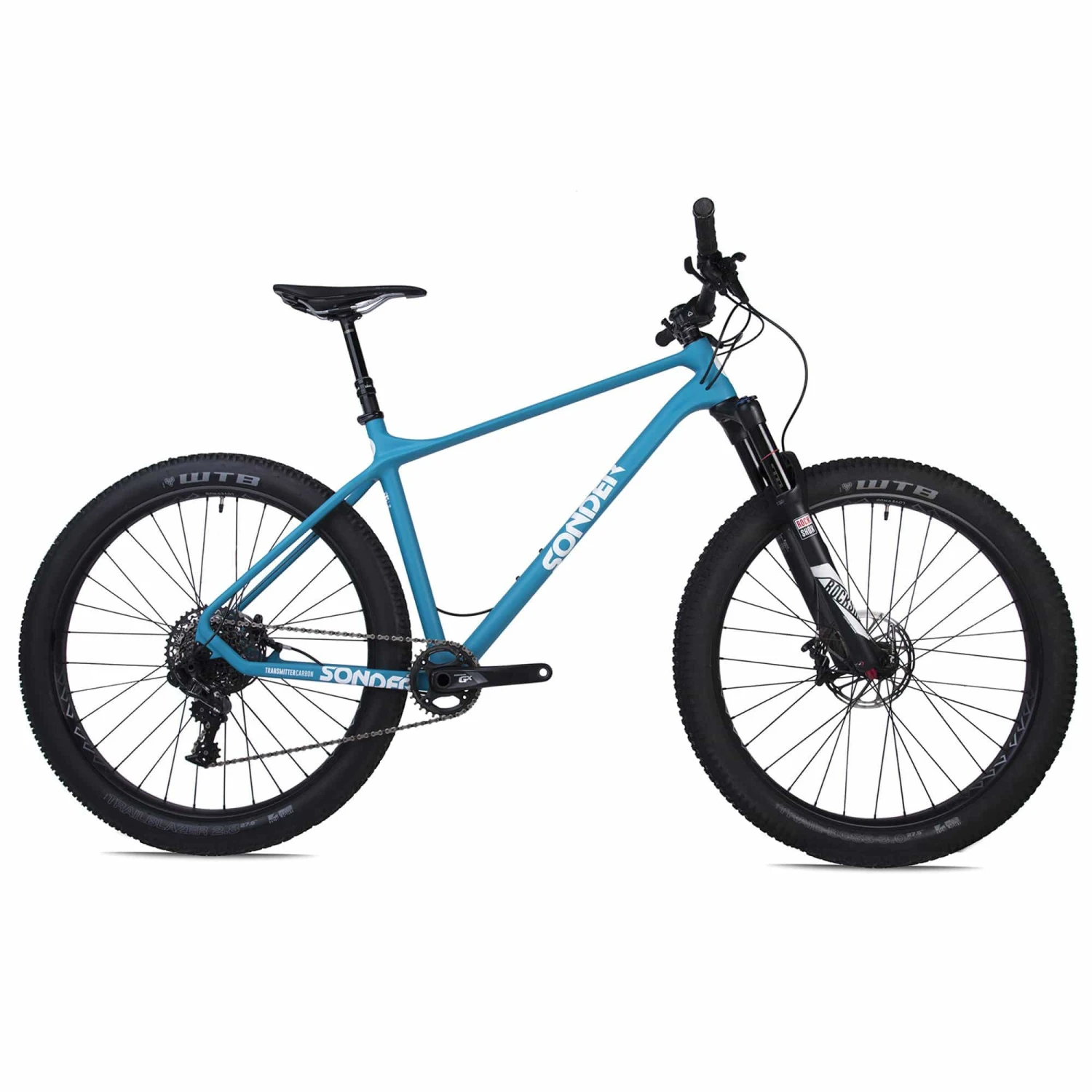

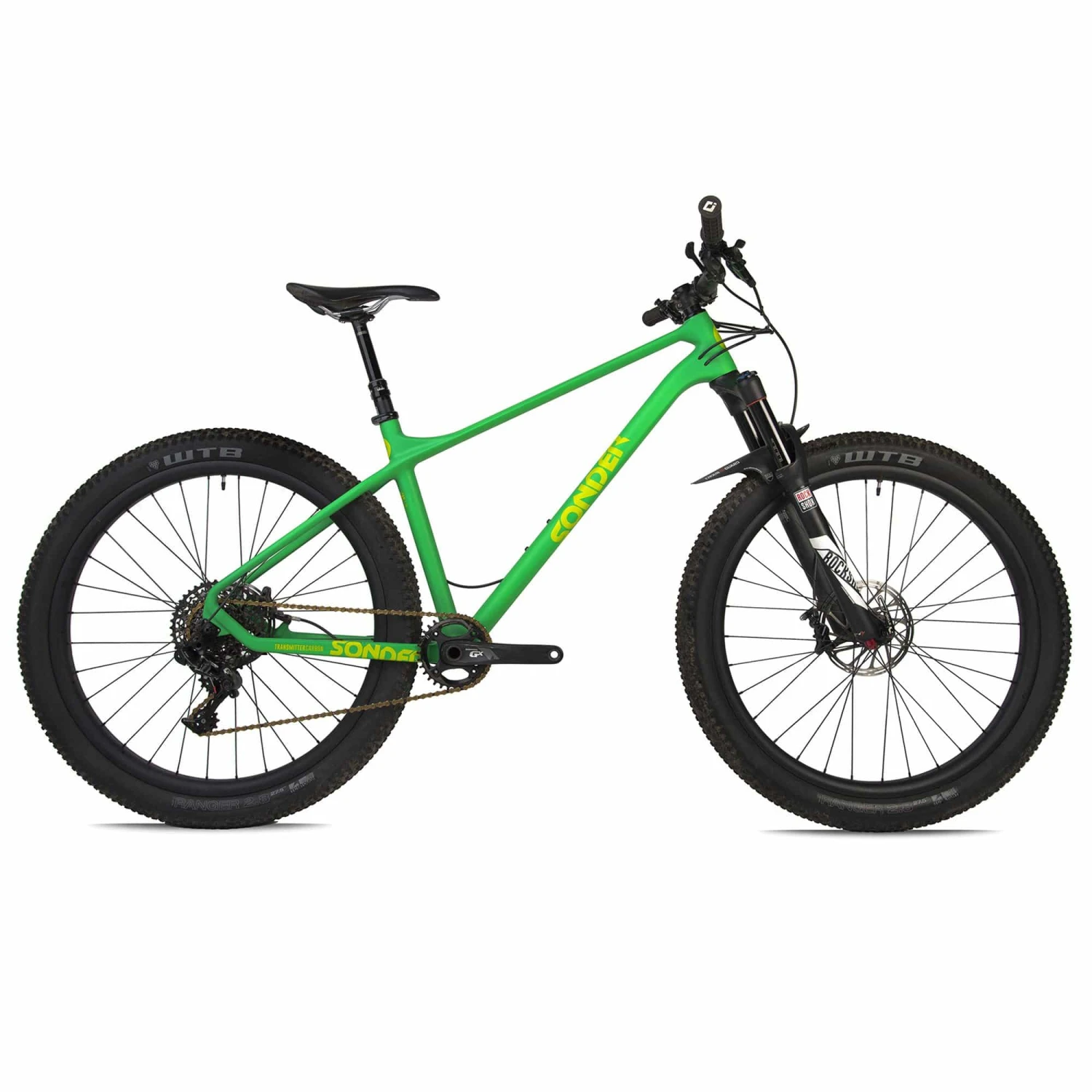

The Transmitter Carbon is long, low, slack and fun.
Stability and control at high speed. Better stand over clearance. Climbs really well and makes the most of any traction.
The 65 degree slack head angle is designed around a 150 mm fork and a 35 mm stem. When combined with short seat stays and that flattened, longer top tube you get an agile and confidence inspiring ride whether riding steep mountain trails or shredding the local woodland singletrack.
Transmitter Carbon makes best use of available technologies. Boost 148/110 standards and bolt through hubs mean a stiffer and more responsive ride. 650b+ tyres on a tubeless compatible wheelset mean loads of grip and control, whether climbing or descending.
At a glance
- Fast, agile trail centre and big mountain hardtail mountain bike frame
- Vertically compliant laterally stiff carbon frameset
- Drivetrain: SRAM SX Eagle / 1 x 12 / 11-50
- Brakes: SRAM Level
- Fork: Rockshox Recon RL Silver / 150mm / 27.5
- Wheelset: Sonder Nova 27.5+ Wheelset / Shimano
- Tyres: WTB Vigilante / Comp / 2.8 (front) and WTB Trail Boss / Comp / 2.6 (rear)
- Seatpost: Love Mud Membar / 31.6mm / 400mm
Transmitter Carbon frames are designed around 1x specific groupsets and feature internally routed cables, integrated headsets, stealth dropper routing and a single set of bottle bosses.
The Transmitters are bikes that respond to hard riding. But mostly, they are to be ridden and enjoyed. Easy to ride and maintain, fast and lots of fun.
